Iron Craft Attachments/Implements

 Anyone that owns a skid steer should have a set of Standard Duty Pallet Forks Frame on hand. Forks are ideal for lifting pallets, loading lumber or just about anything else. Our forks are 11/4 inches thick, 4 inches wide and 48 inches long. They are completely heat treated and rated to carry 4,000 lbs. We put a step on both sides of our frames so the operator can easily climb into the cab. Euro Style and John Deere mounts are available.

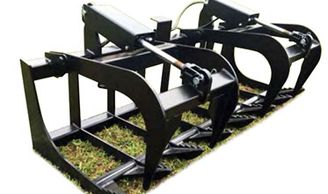

 Our Grapple Rakes are ideal for raking and loading debris. The shape of the grapple makes it easy to roll debris into tight places. A single grapple or two independent grapples are available. We use American made cylinders, rated at 4,000 psi, to handle the toughest jobs. Our Compact Tractor Grapple Rake is for use on tractors less than 40 HP. The Compact Tractor Grapple Rake is built heavy enough for rigorous use, but light enough for compact tractors.

All of our grapples are manufactured with top quality steel and will exceed the lifting capacity of the tractors that they are used with. They come standard with twin 2” bore by 10” stroke cylinders, and are available in 60”, 66”, 72”, and 78” widths.

Standard Duty Root Grapple Specs

Available as a single cylinder or dual cylinder setup

Recommended machine sizes: up to 45 HP.

2″ bore by 10″ stroke cylinders.

3″ square tubing.

Hydraulic lines routed inside the tubing to prevent tears.

Available Sizes: 60", 66”, 72”, 78"

Our Cat 1 Quick Hitch adapter makes your day more efficient by being able to quickly switch from one attachment to another. Reduce attachment or release time to seconds versus minutes with this quick hitch system. Recommended for tractors of 50 horsepower or less with Cat 1 hitches.

​

Works with all Cat 1 Titan Implement products, including PTO driven attachments. The quick hitch comes with a set of adapter bushing to properly connect implements to the hitch. Locking handles are aspiring loaded keeping the attachment securely fastened to the adapter. Top link height is adjustable, if necessary, to accommodate a wide variety of attachments.

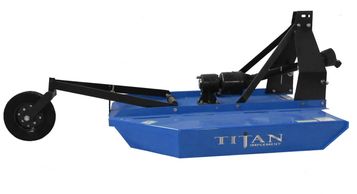

 These rotary cutters are designed for standard-duty applications such as weeds, grass, and light brush up to 1.5” diameter.  These cutters are designed to work with 15 to 65 hp tractors, and are available in 48”, 60”, and 72” widths.  These cutters use a single spindle with two free-swinging blades, which reduce the shock of impact when a stationary object is contacted.  A shear bolt through the input shaft or a slip clutch, if equipped, protects the gearbox and driveline from damage.  Standard equipment includes driveline shields and clutch shields.  Front and rear chain discharge shields are optional.

Our full line of eight core plug aerators, ranging from 48” to 84” in width, will help relieve soil compaction and promote plant growth. With four models, you can size your aerator by the acreage being conditioned or by the size of your tractor. Models are available to aerate anything from a homeowner’s lawn to an athletic field, municipal golf course, or farming application.

Core plug holes provide the plant roots with better access to oxygen and improves the ability of the soil to hold water which could run off on non-aerated ground. These holes guide water and nutrients deep into the ground to reach the plant roots. Models are a 3-point Cat 1 hitch.

Our full line of eight spike aerators, ranging from 48” to 84” in width, provides your operation with the right size tool to suit the plot of land being aerated. Spike aerators, over plug aerators, have a less aggressive impact on the lawn and can be used throughout the year.

The 8100 effectively perforates the ground to better accept air, sunlight, water, and nutrients into the soil. Each aerator spike is approximately 2-3/4 long and 2’ wide at maximum depth. The depth and width of the hole can be controlled in three ways: by using just the weight of the aerator frame, by adding water to the 12-inch drum, and/or by stacking 16-inch blocks on top of the frame. Models are available with a 3-point Category 1 hitch.

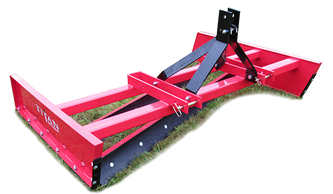

 These Standard-Duty Box Blade Scrapers are designed specifically for working topsoil, gravel, mulch, or manure. Ideal for use on the farm, at building sites, or outdoor arenas.  These scrapers are designed to work with 15 to 45 hp tractors, and are available in five different widths from 48” to 96”. They feature three to six adjustable ripper shanks (dependent on the width of the unit). The box blade has a 17” moldboard height, 22” depth, 6” cutting edge, and is Category I quick hitch compatible.

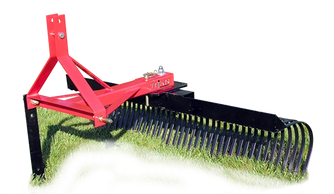

 These Standard-Duty Landscape Rakes work well for cleaning and preparing sites for seeding. They can spread rocks, move debris, and reshape soil. Designed for use by landscapers and contractors, they will meet the demands required for golf course maintenance, terracing hillsides, shaping run-off control ditches, and preparing areas for reforestation. The rakes feature a five-position angle adjustment, are available in widths from 48” to 96”, and are are Category I quick hitch compatible.

 These Standard-Duty Grader Blades offer ease of moving topsoil, gravel, snow, and other similar materials. They are ideal for basic land grading, leveling, or backfilling needs and are designed to work with 15 to 45 hp tractors. They feature a five-position angle adjustment, a three-position tilt adjustment, and are available in four different working widths from 48” to 84”. These models are Category I quick hitch compatible.

FMA Series

The FMA Chain-Drive Tiller is suitable for tractors from 13 to 25 horsepower with a Category 1 hitch. The FMA models are light-duty and most appropriate for gardening and horticulture.

 The UL Rotary Tiller is suitable for tractors from 20 to 40 horsepower with a category 1 hitch. The UL models are light-duty and dependable, appropriate for gardening and horticulture.

UM Series

The UM Rotary Tiller is medium-duty and dependable, able to work demanding soils like vineyards or orchards. The UM series is suitable for tractors from 25 to 50 horsepower with a category 1 hitch.

UM Series

The UM Rotary Tiller is medium-duty and dependable, able to work demanding soils like vineyards or orchards. The UM series is suitable for tractors from 25 to 50 horsepower with a category 1 hitch.

UH Series

The UH series is suitable for tractors from 50 to 65 hp with a Category 2 hitch. The UH models are heavy-duty and dependable, cutting through very demanding and stony soils.

 These Dual Edge Graders offer ease of moving topsoil, gravel, and other similar materials.  They are built to give you years of reliable performance and easily eliminate pot holes and maintain road surfaces.  Designed to work with 20 to 70 hp tractors, they accommodate a Category I quick hitch and are available in four working widths from 48” to 84”.

These Grooming / Finishing Mowers provide superior cutting quality for turf surfaces and well-maintained lawns.  They will easily meet the needs of golf courses, large estate owners, municipalities, ranchers, or commercial mowing and landscape operations.  These mowers are available in widths ranging from 48” to 84”, set up for a Category I quick hitch, and work with tractors ranging from 14 to 65 hp.

This utility sized auger will bore holes of 6”, 9” or 12’ diameter up to 45” deep. Strong and durable construction makes digging post holes for fence posts, or any number of other uses fast and easy. Our shear bolt driveline protection helps prevent equipment damage when unexpectedly contacting an immovable object.

Our unit can operate on a variety of tractors within the 25 to 65 PTO horsepower range. Compatible with most Cat 1 and 2 three-point tractor hitches. The steel auger has replaceable, bolt-on cutting edges to maintain productive boring speeds throughout the life of the post hole digger.
